Spring replacement sized to your door, not pulled off a shelf by color
The springs do almost all the lifting; the opener just nudges a balanced door. Replacing them is a measuring job before it is a wrenching job, and in a West Valley garage it is also a choice about how many cycles you want to buy.

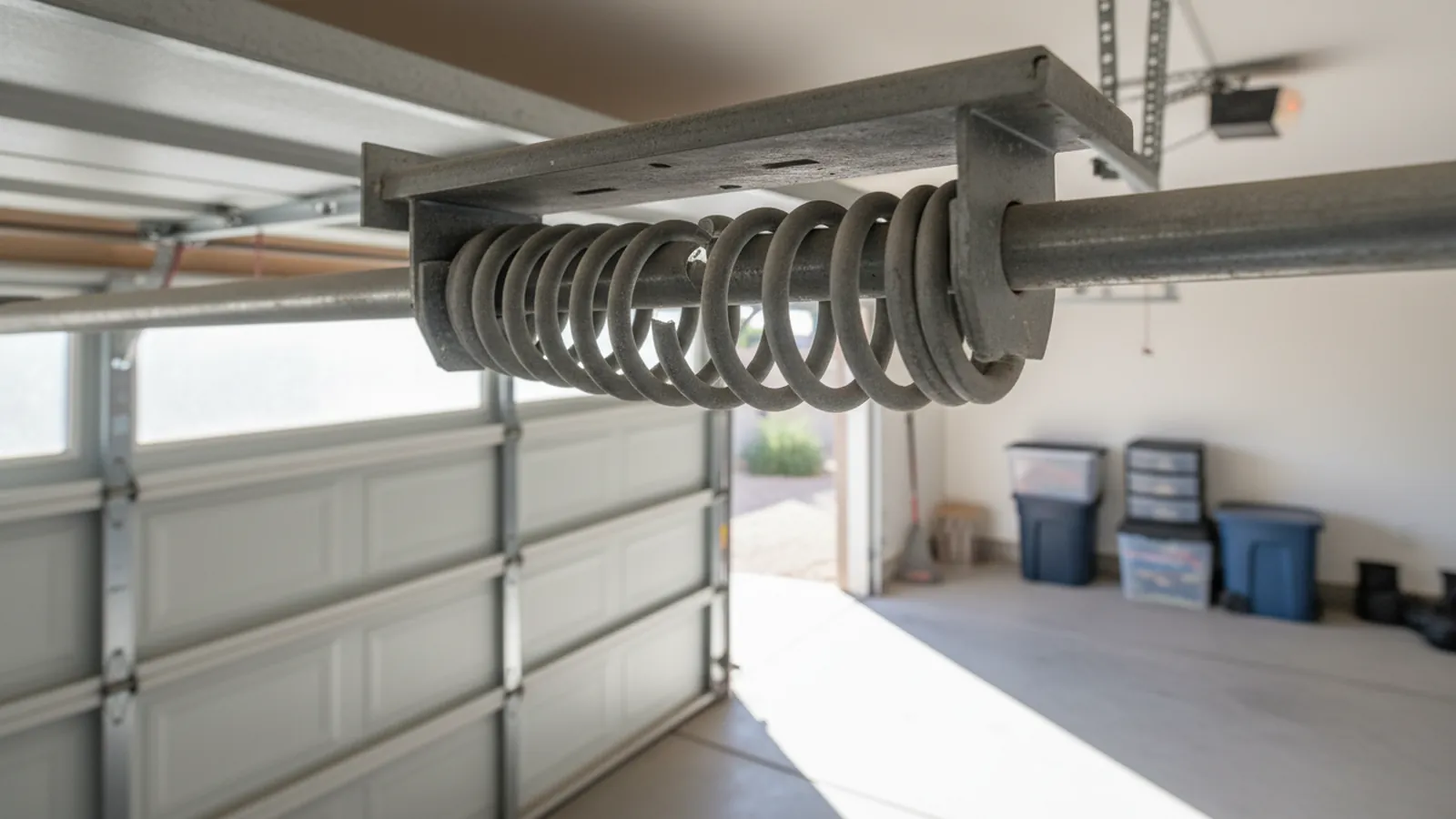

Two spring systems lift sectional doors. Torsion springs sit on a steel shaft above the opening and twist as the door closes, feeding lift back through cables to the bottom corners; nearly every door installed in Surprise since the 1990s has one or two of them. Extension springs stretch along the horizontal track on each side and are found on older Sun City and Youngtown homes and on lighter single-car doors. Both are rated in cycles, one cycle being one open and one close, and the standard residential spring is built for roughly 10,000.
The replacement starts with a tape measure. The technician reads the old spring's wire diameter, inside diameter and length, confirms the door's weight by lifting it with the opener disconnected or calculating from the make and section count, and fits springs that balance that exact weight. Two springs on a door are replaced together: they have the same cycles on them and the survivor will fail within months, and a fresh spring working against a tired one unbalances the door and loads the opener. The cables and drums are checked at the same time, because the bottom brackets rust from sprinkler spray in this climate and a new spring on a frayed cable is a job half done.
The cycle choice matters more here than almost anywhere. A door in Sun City Grand or Sun City West is often the household's front door, opened eight to twelve times a day; a 10,000-cycle spring on that schedule is gone in about three years. A high-cycle spring rated for 25,000 or more costs a modest premium and lasts two to three times as long. On a door that works that hard it is the obvious buy, and on a family door it is still cheaper per year.
After the springs go on, the door is wound to balance and lifted by hand to check it holds at waist height, the opener's force and travel settings are reset for the new tension, and the reverse test is run on a block of wood. The whole visit on a two-car door is about an hour.
How the job is handled
Measured, weighed, matched
Wire size, inside diameter and length read from the old spring; door weight confirmed; springs sized to balance it.
Always a matched set
Both springs on a two-spring door, so the second does not fail next month and the door stays level.
Cycle options explained
Standard 10,000-cycle or 25,000-plus high-cycle springs, with the per-year cost of each worked out for how your door is used.
Cables and brackets inspected
The parts a tired spring strains are checked and replaced in the same visit when rusted or frayed.
Rebalanced and reset
Door held at waist height by hand, opener force recalibrated, reverse test passed.
Same visit
The common West Valley sizes ride on the truck; most spring jobs are done in about an hour.
Spring replacement: West Valley prices for 2026
| Work | Range | What changes it |
|---|---|---|
| Single torsion spring, one-car door | $190 – $340 | 9×7 and 8×7 doors |
| Matched torsion set, two-car door | $280 – $520 | 16×7 and 18×7, standard cycle |
| High-cycle torsion set (25,000+) | $360 – $650 | Best value on doors used 6+ times a day |
| Extension spring pair with safety cables | $170 – $320 | Older Sun City and single-car doors |
| Extension-to-torsion conversion | $420 – $760 | New shaft, drums, cables and springs |
| Cables replaced with the springs | + $80 – $170 | When frayed or rusted at the bracket |
| Trip and diagnosis | $69 – $119 | Folded into the job |
Planning ranges for Surprise and the surrounding West Valley cities in 2026. The figure you pay is the one written down on site before the work starts; quotes on replacement doors and new openers are free and hold for 30 days.
From the field
Asked about spring replacement
Can you replace only the broken one?
You can, and we will if you insist, but the other spring has identical wear and usually lets go within a few months. A set now costs about $90 more than a single and saves a second trip and a stressed opener.
How long will new springs last here?
A standard spring on a family door, four to six cycles a day, lasts five to six years in the West Valley heat. On a Sun City door opened a dozen times a day, three years. High-cycle springs roughly triple either figure.
Do spring colors tell you the size?
No. Color codes vary by manufacturer and are not reliable. The technician measures the wire and the coil and weighs the door instead.
Can I buy springs online and have you install them?
We will fit customer-supplied springs at a labor rate if they measure correctly for the door. Most online orders by door size alone are wrong for the door's weight, especially on insulated or windowed doors.
Should I convert extension springs to torsion?
When the extension springs are due anyway, usually yes: torsion lifts more evenly, lasts longer and fails more safely. Very low headroom sometimes rules it out, and then new extension springs with safety cables is the right call.
Is there a warranty on springs?
Yes, with terms tied to the spring's cycle rating and written on the invoice.
